The AUTOMINI series autoclaves are a compact pressurization system with a pressure switch complete with pressure gauge and 2lt painted steel expansion tank.
The AUTOMINI series autoclaves are the ideal solution for onboard water systems. The pressure switch detects the pressure variations in the system and reacts by starting or stopping the side channel self-priming electric pump so as to keep the system pressure within the desired range. The electric pump can be supplied with a single-phase asynchronous motor or a DC one so as to satisfy all installation needs.

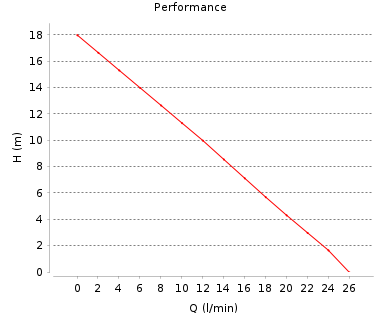

| Capacity (l/min) | ||||
|---|---|---|---|---|
| 1m | 5m | 10m | 20m | 30m |
| 25 lt/min | 19 lt/min | 12 lt/min | 0 lt/min | 0 lt/min |
| Pump features | ||||
|---|---|---|---|---|
| Ports | ∅ Hose fitting | Priming ability | Qmax | Hmax |
| 3/4" | 20 mm | 6 m | 26 lt/min | 18 m |
| Overall dimensions | ||||
|---|---|---|---|---|
| W | L | H | Weight | Leq A* |
| 250 mm | 150 mm | 195 mm | 5.2 kg | 64 dB |
