The GAX series autoclaves are a high quality pressurization system with a pressure switch complete with pressure gauge and 20 l stainless steel expansion tank.
The GAX series autoclaves are the ideal solution for pressurized systems.
The pressure switch detects the pressure variations in the system and reacts by starting or stopping the jet type electric pump so as to keep the system pressure within the desired range. The electric pump can be supplied with a single-phase asynchronous motor or a DC one so as to satisfy all installation needs.

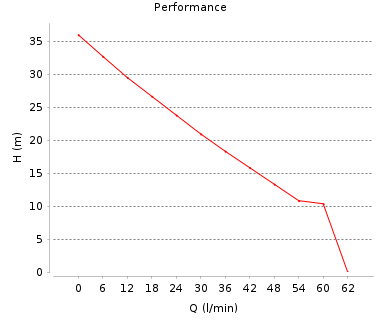

| Capacity (l/min) | ||||
|---|---|---|---|---|
| 1m | 5m | 10m | 20m | 30m |
| 61 lt/min | 0 lt/min | 56 lt/min | 32 lt/min | 11 lt/min |
| Pump features | ||||
|---|---|---|---|---|
| Ports | ∅ Hose fitting | Priming ability | Qmax | Hmax |
| 1" | 0 mm | 6 m | 62 lt/min | 36 m |
| Overall dimensions | ||||
|---|---|---|---|---|
| W | L | H | Weight | Leq A* |
| 380 mm | 170 mm | 190 mm | 7.5 kg | 0 dB |
