ENT 50
ENT electric pumps

Use

Use and maintenance manual

ENT series are professional versions of self-priming brass transfer pumps. Equipped with an oversized three-phase asynchronous motor and long life rotary switch, they are designed for heavy duty applications.
These pumps are equipped with a strong suction capacity, can operate even with discontinuous presence of the liquid and you can reverse the flow. They are really multifunction pumps, able to solve multiple pumping problems. For each application it is necessary to verify the suitability and choose the appropriate gaskets.

The product are particularly suitable for use:

agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
professional use (continuous over time and heavy-duty applications, installation on systems)
industry (installation on plant, machinery, machinery, production lines)

Hydraulic specifications

Maximum capacity : 250 lt/min
Maximum head : 29 m
Gasket on the shaft: Seal
Maximum priming height : 6 m
Threaded ports: 2"
Maximum liquid density 1.1g/cm³ free of hard particles in suspension
Maximum temperature 90°C
Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
Possibility of reversing the pumping flow
Coupling with impeller locked
Complete with a pair of brass hose fittings for pipes 50 (one straight and one curved)
Possibility of working for short periods with closed pipes
During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Technical specifications

Material

Pump Parts: Brass
Shaft : AISI 316
Impeller : Brass
Gaskets: NBR

MOTOR

Powered with a Three-phase asynchronous 380V 50Hz
Equipped with MEC 90 motor (1400 rpm 2.5HP / 1,9 KW)
Ip protection degree X4
Insulation class F
Power connection via cable end Stripped cable 2m
Switching on and reversing of the pumping flow through inverter switch

Pump features
Ports	∅ Hose fitting	Priming ability	Qmax	Hmax
2"	50 mm	6 m	250 lt/min	29 m

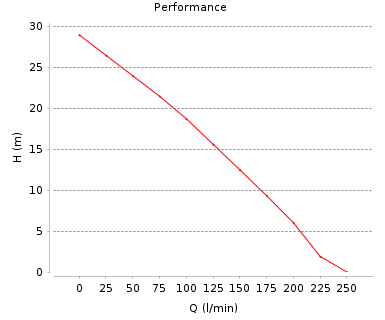

Capacity (l/min)
1m	5m	10m	20m
230 lt/min	208 lt/min	170 lt/min	90 lt/min

Overall dimensions
W	L	H	Weight	Leq A*
430 mm	200 mm	250 mm	20.7 kg	91 dB

Characteristics referring to operation with water at 20 °
* Leq A detected 1 meter from the pump surface

Available for the hydraulic part on request

By-pass 50

FOR USE AND TRANSPORT

Feet for ceiling fixing
Plate with handle
Trolley

Liquids loading / unloading

Filler plug (brass)
Drain tap (brass)

SEALS

Mechanical seal
Viton

SPECIAL PORTS

Ports Macon 50 (brass)

Available for the motor on request

Motor

Terminal board

You can complete the ENT 50 with...

Bottom filter 50
