Product Catalogue

I 20
I pumps

Use

Nautical Agriculture Transport

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow. The I series is made of CB754S brass with a stainless steel shaft. This version with support and pulley allows easy coupling with any motor. For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:
  • nautical (bilge, services, cooling, washing, sea water)
  • agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
  • transports (tankers, road machines, on board water systems)

Hydraulic specifications

  • Maximum capacity : 32 lt/min
  • Maximum head : 25 m
  • Gasket on the shaft: Seal
  • Maximum priming height : 6 m
  • Threaded ports: 3/4"
  • Maximum liquid density 1.1g/cm3 free of hard particles in suspension
  • Maximum temperature 90°C
  • Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
  • Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
  • Possibility of reversing the pumping flow
  • Complete with a pair of brass hose fittings for pipes 20 (one straight and one curved)
  • Possibility of working for short periods with closed pipes
  • During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Technical specifications

  • Prepared for connection via pulley 1A72
Material
  • Pump Parts: Brass
  • Counterflange: AISI 304
  • Shaft : AISI 316
  • Impeller : Brass
  • Gaskets: NBR
Pump features
Ports ∅ Hose fitting Priming ability Qmax Hmax
3/4" 20 mm 6 m 32 lt/min 25 m
Overall dimensions
W L H Weight
160 mm 110 mm 116 mm 2.0 kg

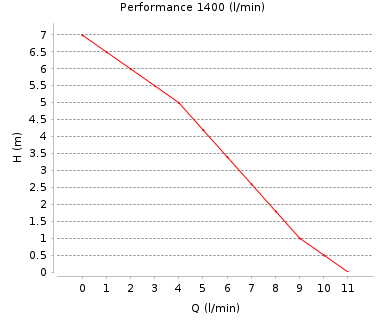

1400 g/min
H (m) 1m 5m 10m
Q 9 lt/min 4 lt/min 0 lt/min
HP 0.1 HP 0.1 HP 0.0 HP

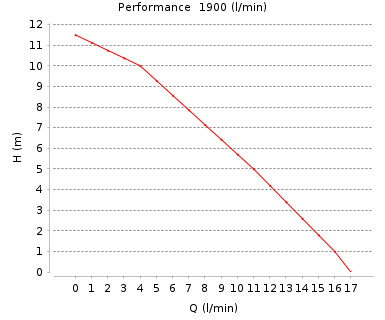

1900 g/min
H (m) 1m 5m 10m
Q 16 lt/min 11 lt/min 4 lt/min
HP 0.1 HP 0.1 HP 0.2 HP

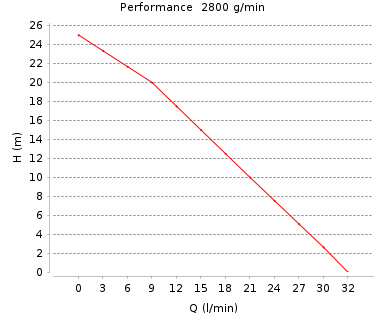

2800 g/min
H (m) 1m 10m 20m 30m
Q 32 lt/min 21 lt/min 9 lt/min 0 lt/min
HP 0.2 HP 0.3 HP 0.3 HP 0.0 HP

Characteristics referring to operation with water at 20 °

Available for the hydraulic part on request

BY-PASS
  • By-pass 20
SEALS
  • Mechanical seal
  • Viton 20 gaskets


You can complete the I 20 with...

Related products

We reserve the right to make changes without prior notice.
