AL 40
AL pumps

Use

Wine sector Food sector Chemical Nautical Transport Brewing Olive oil Professional

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow.

The AL series, entirely made of AISI 316 stainless steel, is particularly suitable for corrosive and food liquids.

This version with support and pulley allows easy coupling with any motor.

For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:
  • enology (wine, musts)
  • food industry (oil, vinegar, brine, fruit juices, beer wort, milk)
  • chemical industry(corrosive liquids)
  • nautical (bilge, services, cooling, washing, sea water)
  • transports (tankers, road machines, on board water systems)
  • brewing process (beer must, beer, washing)
  • oil industry (olive oil, seed oil)
  • professional use (continuous over time and heavy-duty applications, installation on systems)

Hydraulic specifications

  • Maximum capacity : 177 lt/min
  • Maximum head : 17 m
  • Gasket on the shaft: Mechanical gasket
  • Maximum priming height : 6 m
  • Threaded ports: 1"½
  • Maximum liquid density 1.1g/cm3 free of hard particles in suspension
  • Maximum temperature 90°C
  • Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
  • Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
  • Possibility of reversing the pumping flow
  • Possibility of working for short periods with closed pipes
  • During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Technical specifications

  • Prepared for connection via pulley 2A72
Material
  • Pump Parts: AISI 316
  • Shaft : AISI 316
  • Impeller : AISI 316
  • Gaskets: NBR
  • Mechanical gasket ceramic/graphite/nbr
Pump features
Ports ∅ Hose fitting Priming ability Qmax Hmax
1"½ 40 mm 6 m 177 lt/min 17 m
Overall dimensions
W L H Weight
312 mm 166 mm 189 mm 6.9 kg
1400 g/min
H (m) 1m 5m 10m
Q 137 lt/min 112 lt/min 76 lt/min
HP 0.6 HP 0.7 HP 0.8 HP

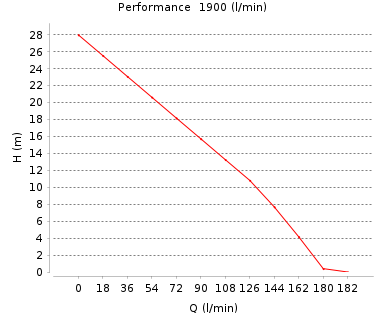

1900 g/min
H (m) 1m 5m 10m
Q 177 lt/min 158 lt/min 132 lt/min
HP 1.2 HP 1.3 HP 1.4 HP

Characteristics referring to operation with water at 20 °

Available for the hydraulic part on request

BY-PASS
  • By-pass inox 40
  • Quick disassembly pump
FOR USE AND TRANSPORT
  • Feet for ceiling fixing
  • Feet for fixing to: wall
Liquid loading / unloading
  • Drain valve 1/4
  • Drain valve 1/8
  • Drain valve DIN 10
  • Drain valve
Liquids loading / unloading
  • Drain plug
PIPE FITTINGS
  • Plastic fittings 30 AL40
  • Plastic fittings 40
  • Stainless steel fittings 30 AL40
  • Stainless steel fittings 40
SEALS
  • EPDM gaskets 30/40
  • Teflon gaskets 30/40
  • Viton 30/40 gaskets
SPECIAL PORTS
  • Ports clamp DN 25
  • Ports clamp DN 40
  • Ports DIN 25
  • Ports DIN 32
  • Ports DIN 40
  • Ports Macon 40
  • Ports garolla 40


You can complete the AL 40 with...

Related products

We reserve the right to make changes without prior notice.
