ALX 50
ALX pumps

Use

Use and maintenance manual

The best solution for the suction and transfer of liquids, thanks to the strong self-priming ability, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow, is easy to install and use. The ALX series pumps are entirely made of AISI 316 stainless steel. They are provided with hose connectors. This model is equipped with a multiplier (ratio 1: 6) for coupling to 1 ”3/8 rotating PTOs at low speed. For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:

enology (wine, musts)
chemical industry(corrosive liquids)
agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
transports (tankers, road machines, on board water systems)
professional use (continuous over time and heavy-duty applications, installation on systems)

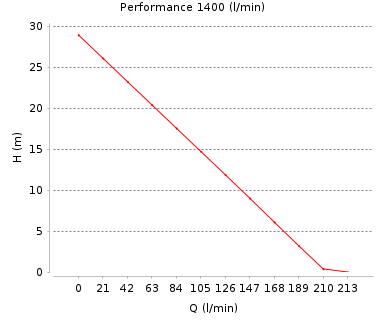

Hydraulic specifications

Maximum capacity : 205 lt/min
Maximum head : 29 m
Gasket on the shaft: Mechanical gasket
Maximum priming height : 6 m
Threaded ports: 2"
Maximum liquid density 1.1g/cm³ free of hard particles in suspension
Maximum temperature 90°C
Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
Possibility of reversing the pumping flow
Possibility of working for short periods with closed pipes
During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary
